查询请求流量日志分析 #

极限网关能够跟踪记录经过网关的所有请求，可用来分析发送给 Elasticsearch 的请求情况，用于分析请求性能和了解业务运行情况。

网关配置修改 #

极限网关安装包解压后，会有一个默认配置gateway.yml。只需对其进行简单的修改，就可实现流量分析目的。通常我们只需修改此部分内容。后面的配置项会通过变量方式引用在此定义的内容。

env:
  LOGGING_ES_ENDPOINT: http://localhost:9200
  LOGGING_ES_USER: elastic
  LOGGING_ES_PASS: password
  PROD_ES_ENDPOINT: http://localhost:9200
  PROD_ES_USER: elastic
  PROD_ES_PASS: password
  GW_BINDING: "0.0.0.0:8000"
  API_BINDING: "0.0.0.0:2900"

上面的配置定义了两个 ES 集群和网关的监听信息。

LOGGING_ES_ENDPOINT 定义日志集群的访问信息，所有请求记录将写入该集群。
PROD_ES_ENDPOINT 定义生产集群的访问信息，网关将代理此集群。
*_ES_USER 和*_ES_PASS 定义集群的认证信息。
API_BINDING 定义网关 API 服务监听的地址和端口。
GW_BINDING 定义网关代理服务监听的地址和端口。

在测试环境中，日志集群和生产集群可以是同一个。
请确保将访问 ES 集群的请求发往网关代理服务监听的地址和端口。

网关自带cache功能，如果需要启用该功能，请修改default_flow配置如下

  - name: default_flow
    filter:
      - get_cache:
      - elasticsearch:
          elasticsearch: prod
          max_connection_per_node: 1000
      - set_cache:

INFINI Easysearch #

INFINI easysearch支持更高的压缩率，更利于节省磁盘空间。
如果logging集群使用的是INFINI easysearch，注意要安装index-management插件。
点此查看插件安装文档

bin/easysearch-plugin install index-management

插件安装完后重启生效。

配置索引模板 #

如果你已经在使用 INFINI Console了，可跳过配置索引生命周期和索引模板，因为这些都已经自动建好了。

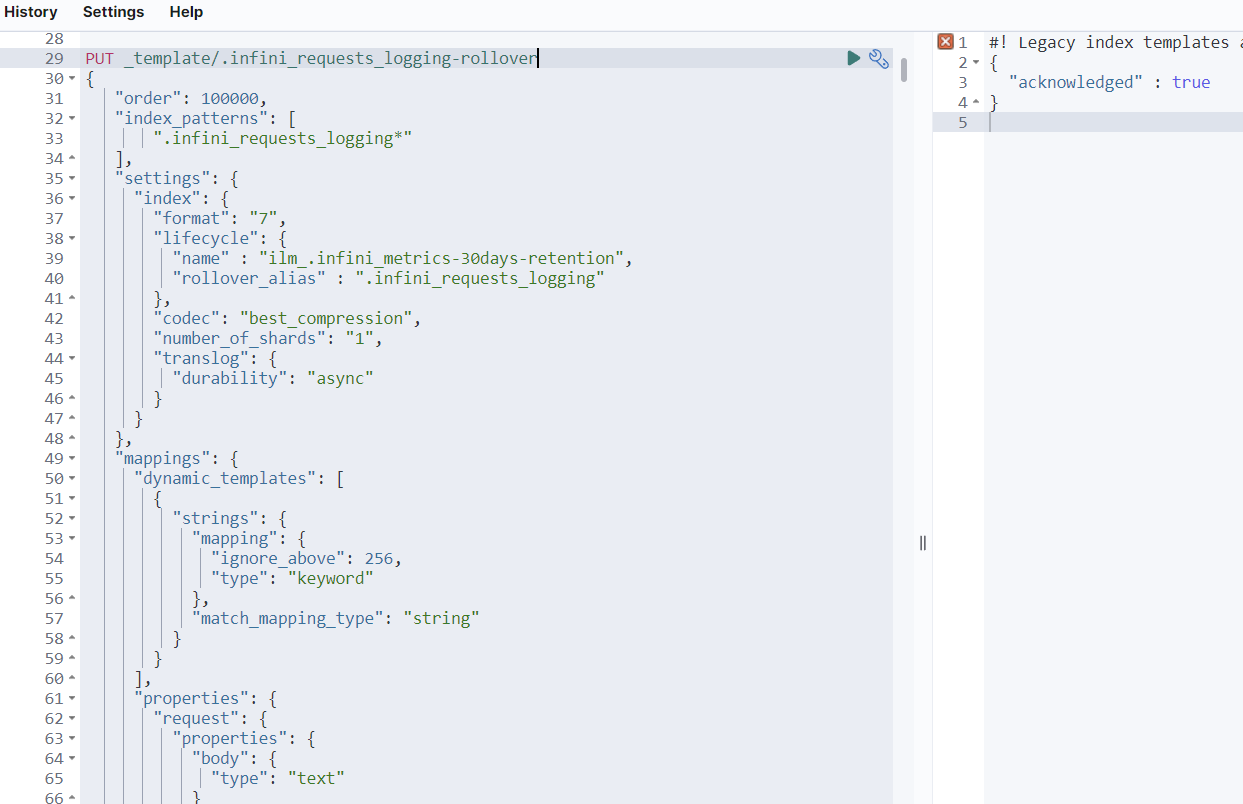

在 logging 集群上执行下面的命令创建日志索引的模板。

请注意，您可能需要在执行之前修改上面的模板设置，例如增加 routing.allocation.require 参数，指定索引创建时存放的节点属性。

展开查看 Elasticsearch 的模板定义 ...

PUT _template/.infini_requests_logging-rollover
{
   "order": 100000,
   "index_patterns": [
       ".infini_requests_logging*"
   ],
   "settings": {
     "index": {
       "format": "7",
       "lifecycle": {
         "name" : "ilm_.infini_metrics-30days-retention",
         "rollover_alias" : ".infini_requests_logging"
       },
       "codec": "best_compression",
       "number_of_shards": "1",
       "translog": {
         "durability": "async"
       }
     }
   },
   "mappings": {
     "dynamic_templates": [
       {
         "strings": {
           "mapping": {
             "ignore_above": 256,
             "type": "keyword"
           },
           "match_mapping_type": "string"
         }
       }
     ],
     "properties": {
       "request": {
         "properties": {
           "body": {
             "type": "text"
           }
         }
       },
       "response": {
         "properties": {
           "body": {
             "type": "text"
           }
         }
       },
       "timestamp": {
         "type": "date"
       }
     }
   },
   "aliases": {}
 }


DELETE .infini_requests_logging-00001
PUT .infini_requests_logging-00001
{
  "settings": {
      "index.lifecycle.rollover_alias":".infini_requests_logging"
    , "refresh_interval": "5s"
  },
  "aliases":{
    ".infini_requests_logging":{
      "is_write_index":true
    }
  }
}

展开查看 INFINI Easysearch 的模板定义存储减50% ...

PUT _template/.infini_requests_logging-rollover
{
   "order": 100000,
   "index_patterns": [
       ".infini_requests_logging*"
   ],
   "settings": {
     "index": {
       "format": "7",
       "lifecycle": {
         "name" : "ilm_.infini_metrics-30days-retention",
         "rollover_alias" : ".infini_requests_logging"
       },
       "codec": "ZSTD",
       "source_reuse": true，
       "number_of_shards": "1",
       "translog": {
         "durability": "async"
       }
     }
   },
   "mappings": {
     "dynamic_templates": [
       {
         "strings": {
           "mapping": {
             "ignore_above": 256,
             "type": "keyword"
           },
           "match_mapping_type": "string"
         }
       }
     ],
     "properties": {
       "request": {
         "properties": {
           "body": {
             "type": "text"
           }
         }
       },
       "response": {
         "properties": {
           "body": {
             "type": "text"
           }
         }
       },
       "timestamp": {
         "type": "date"
       }
     }
   },
   "aliases": {}
 }


DELETE .infini_requests_logging-00001
PUT .infini_requests_logging-00001
{
  "settings": {
      "index.lifecycle.rollover_alias":".infini_requests_logging"
    , "refresh_interval": "5s"
  },
  "aliases":{
    ".infini_requests_logging":{
      "is_write_index":true
    }
  }
}

配置索引生命周期 #

展开查看索引生命周期的定义 ...

PUT _ilm/policy/ilm_.infini_metrics-30days-retention
{
  "policy": {
    "phases": {
      "hot": {
        "min_age": "0ms",
        "actions": {
          "rollover": {
            "max_age": "30d",
            "max_size": "50gb"
          },
          "set_priority": {
            "priority": 100
          }
        }
      },
      "delete": {
        "min_age": "30d",
        "actions": {
          "delete": {
          }
        }
      }
    }
  }
}

导入仪表板 #

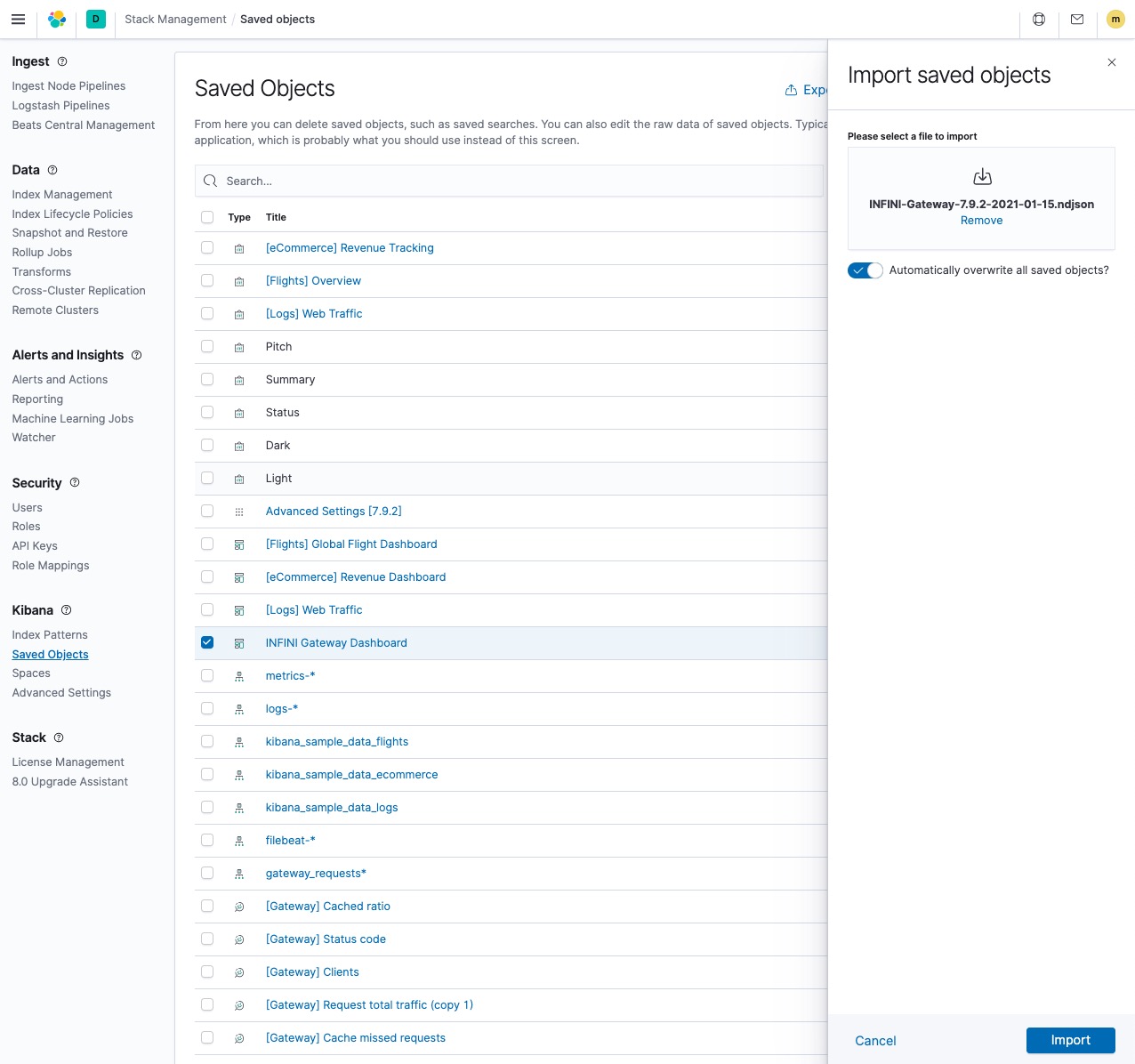

下载面向 Kibana 7.9 的最新的仪表板 INFINI-Gateway-7.9.2-2021-01-15.ndjson.zip，在 dev 集群的 Kibana 里面导入，如下：

启动网关 #

接下来，就可以启动网关，。

➜ ./bin/gateway
   ___   _   _____  __  __    __  _
  / _ \ /_\ /__   \/__\/ / /\ \ \/_\ /\_/\
 / /_\///_\\  / /\/_\  \ \/  \/ //_\\\_ _/
/ /_\\/  _  \/ / //__   \  /\  /  _  \/ \
\____/\_/ \_/\/  \__/    \/  \/\_/ \_/\_/

[GATEWAY] A light-weight, powerful and high-performance elasticsearch gateway.
[GATEWAY] 1.0.0_SNAPSHOT, a17be4c, Wed Feb 3 00:12:02 2021 +0800, medcl, add extra retry for bulk_indexing
[02-03 13:51:35] [INF] [instance.go:24] workspace: data/gateway/nodes/0
[02-03 13:51:35] [INF] [api.go:255] api server listen at: http://0.0.0.0:2900
[02-03 13:51:35] [INF] [runner.go:59] pipeline: request_logging_index started with 1 instances
[02-03 13:51:35] [INF] [entry.go:267] entry [es_gateway] listen at: http://0.0.0.0:8000
[02-03 13:51:35] [INF] [app.go:297] gateway now started.

修改应用配置 #

将之前指向 Elasticsearch 地址的应用（如 Beats、Logstash、Kibana 等）换成网关的地址。假设网关 IP 是 192.168.3.98，则修改 Kibana 配置如下：

# The Kibana server's name.  This is used for display purposes.
#server.name: "your-hostname"

# The URLs of the Elasticsearch instances to use for all your queries.
elasticsearch.hosts: ["https://192.168.3.98:8000"]
elasticsearch.customHeaders: { "app": "kibana" }

# When this setting's value is true Kibana uses the hostname specified in the server.host
# setting. When the value of this setting is false, Kibana uses the hostname of the host
# that connects to this Kibana instance.
#elasticsearch.preserveHost: true

# Kibana uses an index in Elasticsearch to store saved searches, visualizations and
# dashboards. Kibana creates a new index if the index doesn't already exist.
#kibana.index: ".kibana"

# The default application to load.
#kibana.defaultAppId: "home"

保存配置并重启 Kibana。

查看效果 #

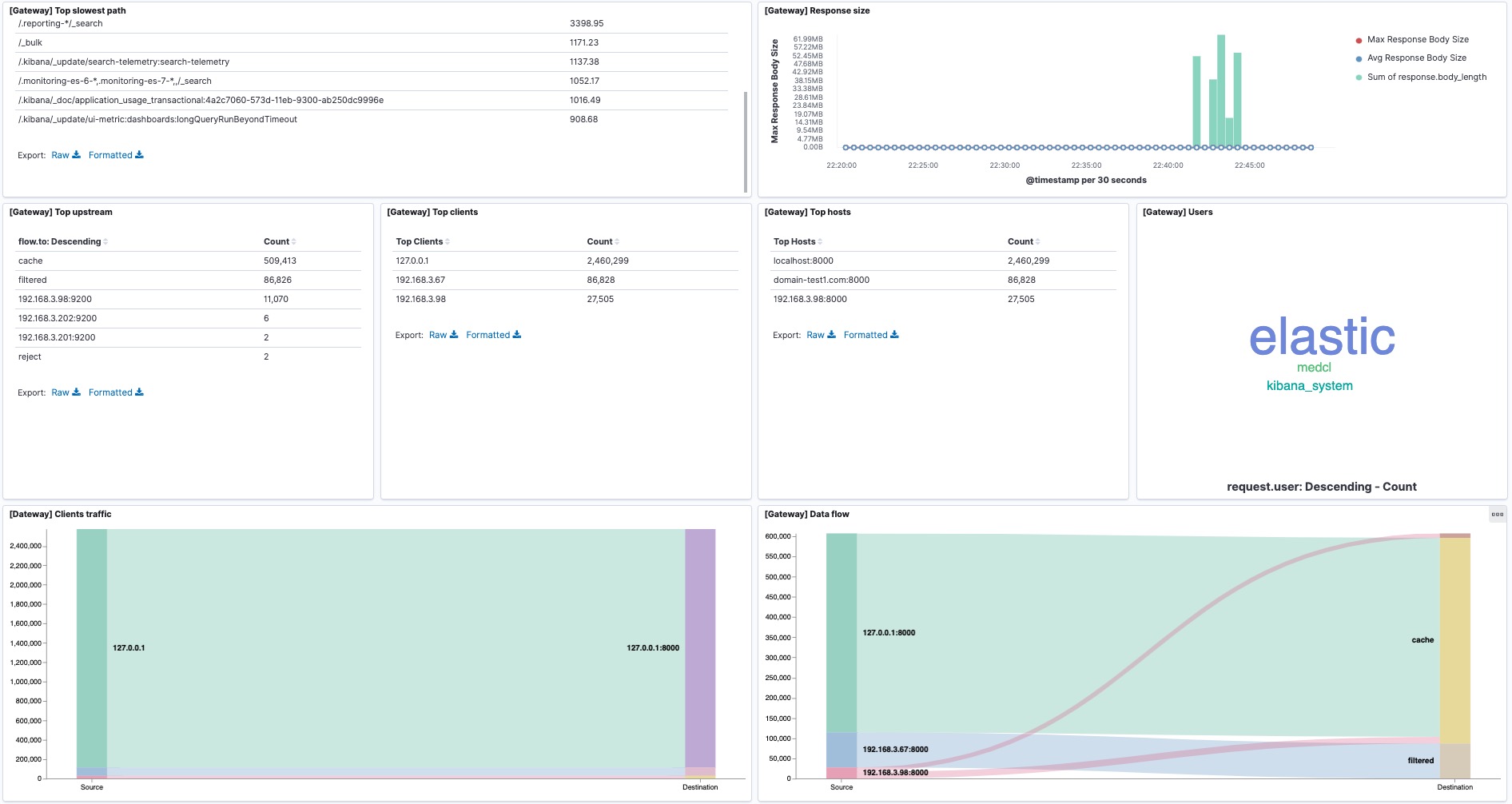

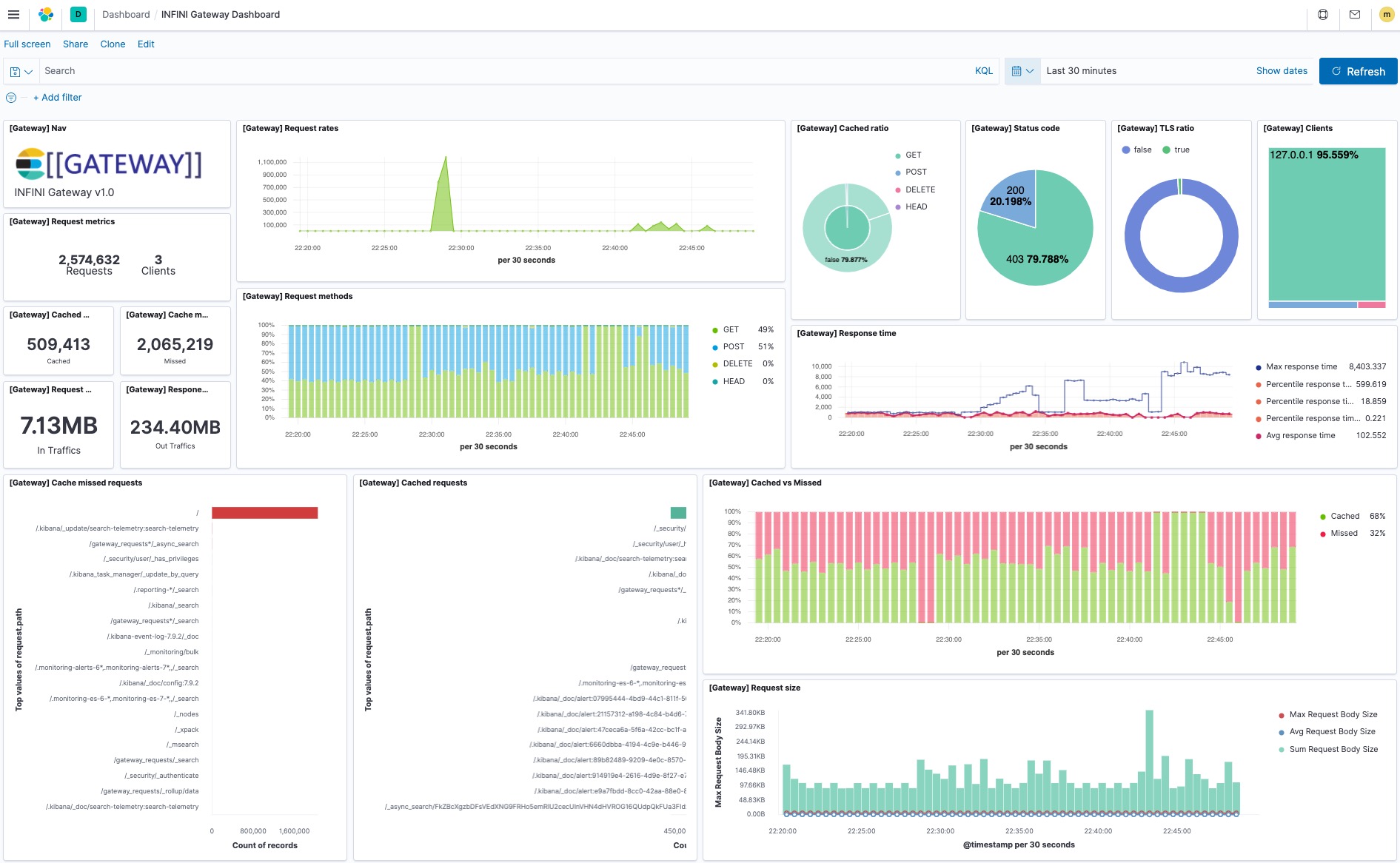

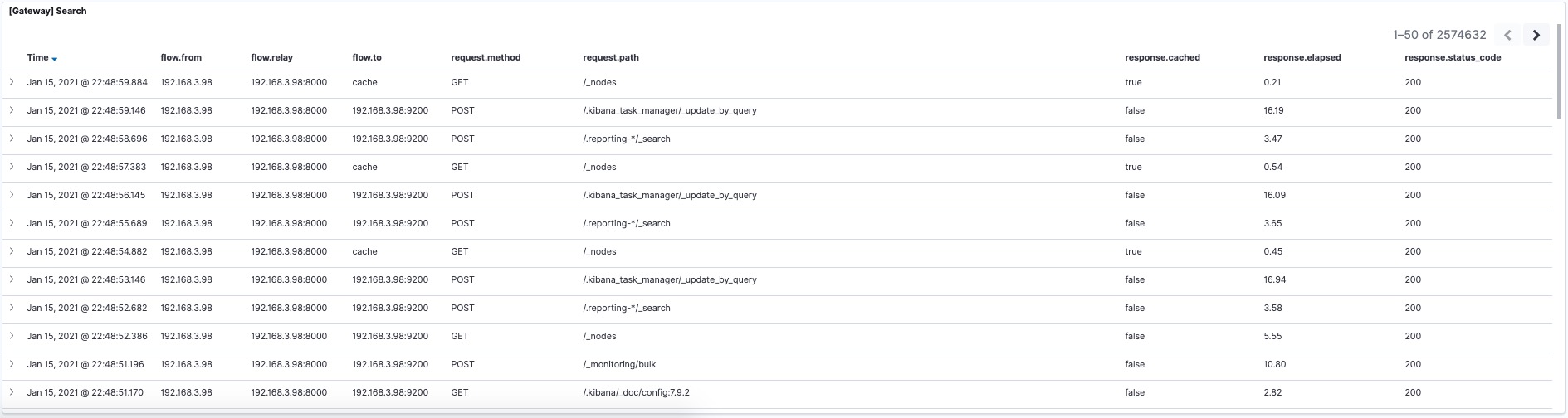

现在任何通过网关访问 Elasticsearch 的请求都能被监控到了。
